Banded Wrap Belts
Features
- Enhanced power transmission capacity up to 25%, compared to standard Belts
- Fewer belts are required as compared to multiple single-belt drive system
- Extended service life
- Top curvature provides superior adhesion and accelerates heat dissipation rate
- Controlled radial and lateral run-out facilitates smooth operation
- Anti-static, oil and heat resistant
- Temperature range: -18°C to +80°C

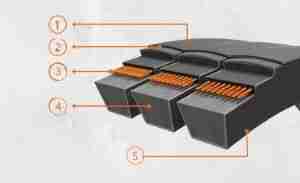

Constructional Details
- Special Curved top tie band design for better flexibility and heat resistance
- High modulus – low shrinkage tension member embedded cushion rubber compound
- High tenacity, low stretch specially treated polyester cord
- Specially designed compression rubber gives stability to the Belt cross-section and supports the cord zone against deflection, under load condition
- Wear-resistant, bias-cut neoprene rubberized polyester cotton fabric
Product Range
| Section | Top Width (mm) | Thickness (mm) | Angle (Degree) | Pitch (mm) | Min. Pulley Dia. (mm) | Manufacturing Range | Length Desg. | |
|---|---|---|---|---|---|---|---|---|
| Min. (inch / mm) | Max. (inch / mm) | |||||||
| A | 13.0 | 10.5 | 40 | 15.9 | 80 | 33 / 838 | 100 / 2500 | Li |
| B | 17.0 | 14.5 | 40 | 19.0 | 130 | 43 / 1092 | 100 / 2500 | Li |
| C | 22.0 | 17.0 | 40 | 25.5 | 210 | 47 / 1194 | 100 / 2500 | Li |
| D | 32.0 | 21.5 | 40 | 37.0 | 370 | 90 / 2286 | 100 / 2500 | Li |
| E | 38.0 | 27.0 | 40 | 44.5 | 520 | 90 / 2286 | 100 / 2500 | Li |
| SPZ | 10.0 | 10.0 | 40 | 12.0 | 67 | 46.5 / 1180 | 100 / 2500 | Lp |
| SPA | 13.0 | 12.0 | 40 | 15.0 | 100 | 38 / 959 | 100 / 2500 | Lp |
| SPB | 17.0 | 17.0 | 40 | 19.0 | 160 | 69.5 / 1762 | 100 / 2500 | Lp |
| SPC | 22.0 | 22.5 | 40 | 25.5 | 224 | 64 / 1632 | 100 / 2500 | Lp |
| 3V | 9.7 | 10.5 | 40 | 10.3 | 67 | 45 / 1143 | 100 / 2500 | La |
| 5V | 15.8 | 16.5 | 40 | 17.5 | 180 | 50 / 1270 | 100 / 2500 | La |
| 8V | 25.4 | 25.0 | 40 | 28.6 | 317 | 100 / 2500 | 100 / 2500 | La |
Note
Intermediate sizes are available upon request
Reference Standards
BS 3790, ISO 5290 & RMA IP-22
Applications
Crushers, pulverisers, pulpers, compressors, vibrating screens, generators, rolling mills, etc.
Product Label
