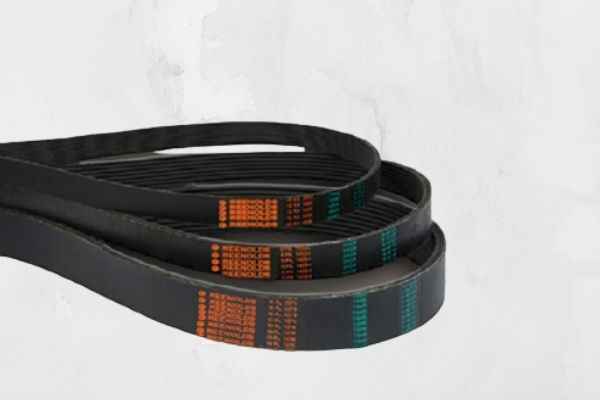

Multi Ribbed Belts
Multi Ribbed Belts are an ideal solution for compact drives in household appliances and heavy machinery. Multi Ribbed Belts combine the high flexibility of flat Belts with a high power transmission capacity of V-Belts.
Multi Ribbed Belts enable economic solutions even under difficult drive conditions, such as large transmission ratios, high Belt speeds, small pulley diameters and back idler pulleys.
Multi Ribbed Belts consist of multiple V-grooves. The design allows operation on small pulley diameters. Multi Ribbed Belts offer high Belt speed. Multi Ribbed Belts are designed for high power transmission ratios and offer high power output.
REENOLDS Multi Ribbed Belts are available in PJ, PK and PL profiles, these Belts are available in the standard version, high temperature, elasticated, topcoat; for packaging machinery; which are fire-resistant, anti-static Belts and double-sided multi ribbed belts.
Features
- High power transmission capacity
- Suitable for small pulley diameters
- Maximum Belt linear speed up to 60 m/sec
- Highly flexible, noise-free & smooth running
- Can be used for speed ratios up to 1:30
- Anti-static oil & heat resistant
- Temperature range: -25°C to +100°C
Constructional Details
- High strength tensile member across the full width for maximum tensile strength and negligible elongation
- Special design ribbed driving surface for maximum area of contact and reduced face pressure
- Special rubber compound for high frictional grip to transmit uniform power even on smaller pulley diamete
Product Range
| Section | Thickness (mm) | Rib Pitch (mm) | Min. Pulley Dia. (mm) | No. of possible Ribs | Manufacturing Range | Length Desg. | |
|---|---|---|---|---|---|---|---|
| Min. (mm) | Max. (mm) | ||||||
| PJ | 3.8 | 2.34 | 20 | 2 to 32 | 355 | 2500 | Le |
| PK | 4.5 | 3.56 | 45 | 2 to 24 | 355 | 2500 | Le |
| PL | 7.6 | 4.70 | 75 | 2 to 20 | 355 | 2500 | Le |
Refrence Standards
RMA IP-26, ISO 9982 & DIN 7867
Applications
Crude oil pumps, spreaders, seeding machines, vegetable crushers, household appliances, washing machines, dryers, machine tools, grinders, etc.
