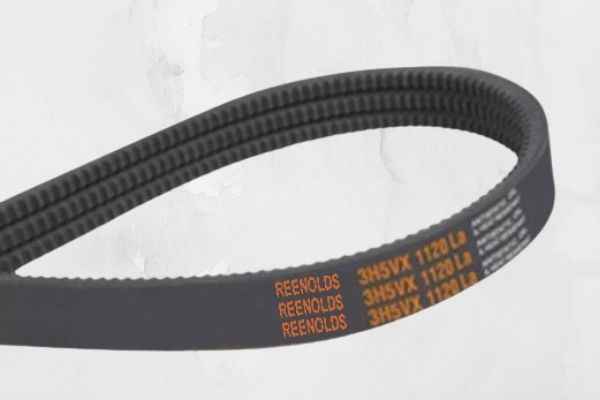

Banded Moulded Raw Edge Cogged Belts
Features
- Extended power transmission capacity up to 25% as compared to standard single Belts
- Lesser number of Belts is required as compared to a multiple single-Belt drives
- Unique cog profile enhances the flexibility and heat dissipation rate
- Extended service life
- Anti-static, oil and heat resistant
- Temperature range: -25ºC to +100ºC
Constructional Details
- Specially designed top band for extra protection against reverse bend & foreign particles
- High modulus cushion compound for superior adhesion
- High tenacity, low stretch specially treated polyester cord
- Fibre loaded, thermal resistant, high modulus base compound
- Moulded cog offers better flexibility and accelerates heat dissipation rate
Product Range
| Section | Top Width (mm) | Thickness (mm) | Angle (Degree) | Pitch (mm) | Manufacturing Range | Length Designation | |
|---|---|---|---|---|---|---|---|
| Min. (inch / mm) | Max. (inch / mm) | ||||||
| AX | 13.0 | 10.0 | 36 | 15.9 | 23.5 / 600 | 100 / 2500 | Li |
| BX | 17.0 | 13.0 | 36 | 19.0 | 23.5 / 600 | 100 / 2500 | Li |
| CX | 22.0 | 16.0 | 36 | 25.5 | 23.5 / 600 | 100 / 2500 | Li |
| XPZ | 10.0 | 10.0 | 36 | 12.0 | 23.5 / 600 | 100 / 2500 | Lp |
| XPA | 13.0 | 12.0 | 36 | 15.0 | 23.5 / 600 | 100 / 2500 | Lp |
| XPB | 16.3 | 16.0 | 36 | 19.0 | 23.5 / 600 | 100 / 2500 | Lp |
| XPC | 22.0 | 20.0 | 36 | 25.5 | 23.5 / 600 | 100 / 2500 | Lp |
| 3VX | 9.70 | 10.0 | 36 | 10.3 | 23.5 / 600 | 100 / 2500 | La |
| 5VX | 15.8 | 16.0 | 36 | 17.5 | 23.5 / 600 | 100 / 2500 | La |
Note
- Intermediate sizes are available upon request
- Aramid cord construction Belts are available upon request
Reference Standards
ISO 5290, BS 3790, RMA IP 22
Applications
Compressors, generators, blowers, hot rolling mills, agitators, industrial fans, separators, etc.
Product Label
