Heavy Duty V Belts
REENOLDS offers a wide range of heavy duty v Belts, offering higher power rating, life and compact drives.
1. Superior, High-power, maintenance-free, Moulded Raw Edge Cogged Belts
2. XR3; High-power, Maintenance-free, Moulded Raw Edge Cogged Belts
3. High-power, Maintenance-free, Wrap Belts
4. -HXS; Heavy-duty, High-power, Banded Wrap Belts
Series of heavy duty v Belts deliver high power ratings up to 50% over the standard Belts. They are recommended for high-temperature industrial drives, compressors, blowers, high power presses, hot rolling mills, textile industry, excavators, pumps and generators. High transmission efficiency up to 98%, resulting in enhanced productivity of these heavy duty v Belts and reduced cost of ownership.
HXS is heavy duty v belts, offering high power rating up to 70% over standard Wrap Banded Belts. They are widely used in applications involving vibrating screens, reclaimers, pulverisers, heavy-duty mixers, forestry woodcutters, wood chipping machines, etc.
The superior service life of these heavy duty v Belts ensures a higher return on investment.
Features
- High power transmission capacity
- Suitable for small pulley diameters
- Maximum Belt linear speed up to 60 m/sec
- Extended service life
- High temperature resistant from -35°C to +130°C
Constructional Details
- Specially designed top fabric for enhanced lateral stiffness and flexibility, protects the Belt from oil, grease or dust
- EPDM Polyester tension member for minimal elongation, facilitating the maintenance-free drive
- Fibre-loaded EPDM compression rubber offers high thermal resistance and enhanced dimensional stability
Product Range
| Section | Thickness (mm) | Rib Pitch (mm) | Min. Pulley Dia. (mm) | No. of possible Ribs | Manufacturing Range | Length Designation | |
|---|---|---|---|---|---|---|---|
| Min. (mm) | Max. (mm) | ||||||
| PJ | 3.80 | 2.34 | 20.0 | 2 to 32 | 280 | 2500 | Le |
| PK | 4.50 | 3.56 | 45.0 | 2 to 24 | 280 | 2500 | Le |
| PL | 7.60 | 4.70 | 75.0 | 2 to 20 | 500 | 2500 | Le |
Reference Standards
RMA IP-26, ISO 9982, DIN 7867
Applications
Lawnmowers, dryers, wet grinders, washing machines, generators, etc

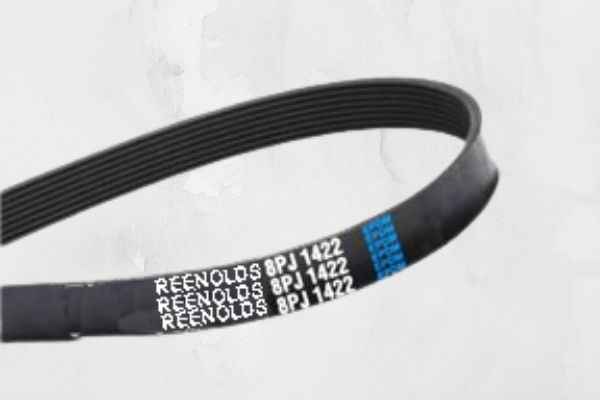

Product Label
