High-power, Maintenance-free, Moulded Raw Edge Cogged Belts
Features
- Superior service life ensuring a higher return on investment.
- Extended temperature range from -50°C to +130°C for optimal performance in diverse applications.
- Maintenance-free performance resulting in minimal service costs.
- Exceptionally high power rating over standard Belts.
- Special Belt surface design for superior flexibility and abrasion resistance.
- High transmission efficiency up to 98%, resulting in enhanced productivity and reduced cost of ownership.
- Special cog design for enhanced flexibility and rapid heat dissipation for improved product performance and operational life.
- Complies with ISO 1813 for anti-static properties for enhanced operational safety.
- Space-saving potential to allow for compactness in the drive.
- REACH and RoHS compliant, enabling a sustainable ecosystem.

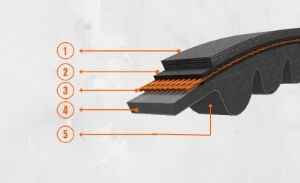

Constructional Details
1.Specially designed rubber top to provide excellent flexibility and to resist abrasion loss.
2.Specially design EPDM Compound with extreme bonding for superior life.
3.High strength, maintenance-free, EPDM polyester cord for negligible elongation.
4.Special design fibre-loaded EPDM compound for superior power transmission.
5.Specially Engineered cog design with stretchable fabric to enhanced Belt flexibility, crack resistance and accelerated heat dissipation rate.
Product Range
| Section | Top Width (mm) | Thickness (mm) | Angle (Degree) | Min. Pully Dia.(mm) | Manufacturing Range | Length Designation | |
|---|---|---|---|---|---|---|---|
| Min. (inch / mm) | Max. (inch / mm) | ||||||
| XPZ | 10.0 | 8.0 | 36 | 56 | 700 mm | 2500 mm | Lp |
| XPA | 13.0 | 10.0 | 36 | 71 | 700 mm | 2500 mm | Lp |
| XPB | 16.3 | 14.0 | 36 | 112 | 700 mm | 2500 mm | Lp |
| XPC | 22.0 | 18.0 | 38 | 180 | 700 mm | 2500 mm | Lp |
| 3V | 9.7 | 8.0 | 38 | 56 | 27.5″ | 100″ | La |
| 5V | 15.8 | 14.0 | 38 | 112 | 27.5″ | 100″ | La |
Reference Standards
BS 3790, ISO 4184, RMA IP-22
Note
Banded section are available upon request
Applications
High-temperature industrial drives, Compressors, Blowers, High power presses, Hot rolling mills, Textile machinery, ID fan, FD fans, Excavators, Pumps, Generators, Pulverizers etc.

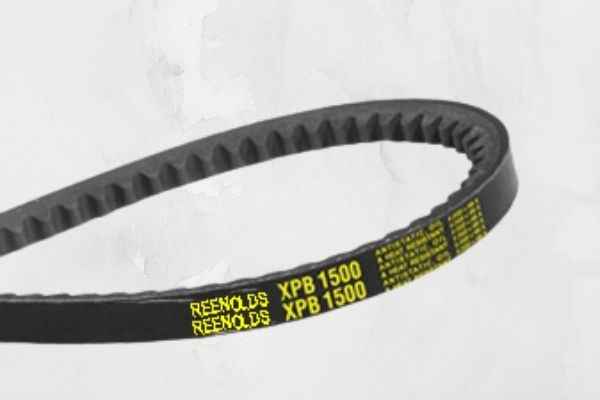

Product Label
