Maintenance free Belts
Years of consultation with their customers, and taking into account the new requirements of the changing world has resulted in, REENOLDS providing the “Perfect Solution”…
Reenolds offers two types of Maintenance free Belts:
1. REENOLDS (High-power, Maintenance-free Wrap Belts), also available in Banded Belt construction

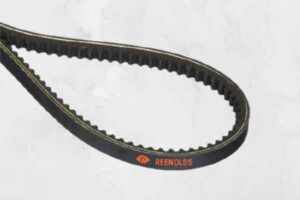

2. REENOLDS (High-power, Maintenance-free, Moulded Raw Edge Cogged Belts)
REENOLDS Maintenance free Belts are produced to comply with the latest REACH directives & RoHS regulations
• The special Belt compound does not emit any toxic substances, either during manufacture, or when running during use.
• The revolutionary design of the compound performs well in adverse conditions, such as high temperatures, UV or Ozone exposure, and chemically aggressive environments.
• These Belts are Maintenance free Belts, no re-tensioning is required.
Features
- Exceptionally high power rating – up to 50% more than standard Belts
- Special cog design facilitates enhanced flexibility and quicker heat dissipation
- High transmission efficiency up to 98%, providing optimum output
- Maintenance-free property of the Belt ensures less machine downtime and an extended service life
- Complies with ISO 1813 – for anti-static property
- Space saving potential
- REACH & RoHS compliant provides an eco-friendly system
- Smooth operation with a minimum tension-drop
- Temperature range from -35°C to +130°C

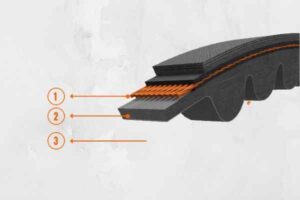

Constructional Details
- High strength, maintenance free, premium cord for lower belt elongation
- Fiber reinforced EPDM base compound offers excellent heat resistance and minimizes abrasion for longer service life
- Specially Engineered cog design enhanced belt flexibility and accelerated heat dissipation rate
Product Range
| Section | Top Width (mm) | Thickness (mm) | Angle (Degree) | Min. Pully Dia.(mm) | Manufacturing Range | Length Designation | |
|---|---|---|---|---|---|---|---|
| Min. (inch / mm) | Max. (inch / mm) | ||||||
| Z | 10.0 | 8.0 | 36 | 56 | 21.5 / 550 | 100 / 2500 | Lp |
| A | 13.0 | 10.0 | 36 | 71 | 21.5 / 550 | 100 / 2500 | Lp |
| B | 16.3 | 14.0 | 36 | 112 | 21.5 / 550 | 100 / 2500 | Lp |
| C | 22.0 | 18.0 | 38 | 180 | 23.5 / 600 | 100 / 2500 | Lp |
| 3VX | 9.7 | 8.0 | 38 | 56 | 21.5 / 546 | 100 / 2500 | La |
| 5VX | 15.8 | 14.0 | 38 | 112 | 21.5 / 546 | 100 / 2500 | La |
Reference Standard
BS 3790, ISO 4184, RMA IP-22
Applications
High temperature industrial drives, compressors, blowers, high power presses, hot rolling mills, textile machinery, ID fan, FD fans, excavators, pumps, generators, pulverisers, etc.
