High-power, High-strength, Inversely Flexible Wrap Belts
Features
- Superior power transmission capacity as compared to standard Belts
- Specially treated outer cover fabric for high wear resistance
- Specially coated aramid cord enhances the adhesion strength and offers minimum elongation
- Unique design in wrap construction to facilitate operation on smaller pulley diameters with an acute reverse bend
- High performance in variable load & reverse idler drives
- Longer service life
- Extended temperature range: -25°C to + 100°C

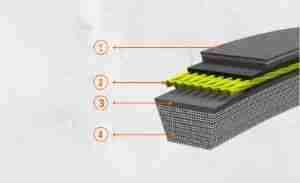

Construction Details
- Special top fabric layer
- Adhesion rubber
- Specially treated aramid tensile member provides extra strength & low belt stretch
- High modulus rubber base compound
- Multi-layer fabric provides extra strength & act as a crack barrier during the reverse bend
Product Range
| Section | Top Width (mm) | Thickness (mm) | Manufacturing Range | Length Desg. | |
|---|---|---|---|---|---|
| Min. (inch) | Max. (inch) | ||||
| A | 13.0 | 8.0 | 46 | 100 | Lp |
| B | 17.0 | 10.0 | 46 | 100 | Lp |
| C | 22.0 | 11.0 | 46 | 100 | Lp |
Note
Intermediate sizes are available upon reques
Applications
Rice harvesters, planters, etc.
Product Label
