Heavy-duty, High-power, Banded Belts
Features
- Superior power transmission capacity- Up to 70% more than the standard single Belts
- Specially treated outer tough cover fabric reduces sidewall wear rate and offers enhanced flexibility
- Top curvature profile and special frictionless fabric enhance the heat dissipation rate
- Special aramid cord for high tensile strength and minimum elongation
- Designed to exhibit excellent durability, strength, abrasion and wear resistance
- Best suited for heavy shock and impulse load drives
- Extended temperature range -25°C to +100°C

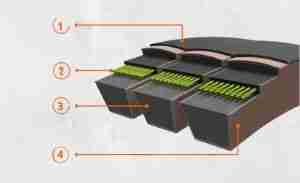

Constructional Details
- Curved-top profile offers excellent lateral rigidity and protects the Belt from band separation
- Specially engineered high tensile-strength aramid cord provides excellent tensile strength and negligible Belt elongation
- The specially designed base compound provides excellent modulus strength, facilitating enhanced power transmission
- Bareback, frictionless, unique outer fabric facilitates negligible slippage during operation, offers excellent flexibility, and reduces sidewall wear rate
Product Range
| Section | Thickness (mm) | Top Widthw (mm) | Angle (Degree) | Pitch (mm) | Manufacturing Range | Length Designation | |
|---|---|---|---|---|---|---|---|
| Min. (inch / mm) | Max. (inch / mm) | ||||||
| A | 13.0 | 10.5 | 40 | 15.9 | 33 / 838 | 100 / 2500 | Li |
| B | 17.0 | 14.5 | 40 | 19.0 | 43 / 1092 | 100 / 2500 | Li |
| C | 22.0 | 17.0 | 40 | 25.5 | 47 / 1194 | 100 / 2500 | Li |
| SPA | 13.0 | 12.0 | 40 | 15.0 | 38 / 959 | 100 / 2500 | Lp |
| SPB | 17.0 | 17.0 | 40 | 19.0 | 69.5 / 1762 | 100 / 2500 | Lp |
| SPC | 22.0 | 22.5 | 40 | 25.5 | 64 / 1632 | 100 / 2500 | Lp |
| 5V | 15.8 | 16.5 | 40 | 17.5 | 50 / 1270 | 100 / 2500 | La |
| 8V | 25.4 | 25.0 | 40 | 28.6 | 100 / 2540 | 100 / 2500 | La |
Reference Standards
BS 3790, ISO 5290 & RMA IP-22
Applictaions
Vibrating screens, reclaimers, pulverisers, heavy-duty mixers, forestry woodcutters, wood chippers, surface miners, stackers, excavators, stone crushers, jaw crushers, cone crushers, ball mills, etc.
