Scooter Belts (CVT)
Features
- Special top-fabric for increased flexibility
- Fibre-loaded EPDM compound for high thermal resistance and superior laterial rigidity
- High power transmission capacity
- Smooth operation in CVT drives
- Longer service life

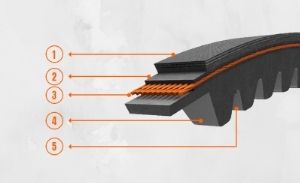

Constructional Details
- Specially designed top fabric for high resistance to wear and crack
- Special high thermal resistance adhesion compound for improved dynamic adhesion performance
- Especially EPDM treated polyester cord ensures minimal stretch of the belts
- Fibre loaded EPDM compression rubber compound for high power transmission, high thermal resistance and dimensional stability
- Moulded cog profile for superior flexibility and heat dissipation also protected with the crack-resistant bottom fabric
Product Range
| Section | Top Width (mm) | Thickness (mm) | Angle (Degree) | Length Range (mm) |
|---|---|---|---|---|
| TW TH A L | 10 bis 30 | 10 bis 20 | 30 | 600 bis 1500 |
Reference standards
PIX Proprietary
Application
Scooter CVT drive
Product Label
