Centre-corded, Extremely Flexible, Raw Edge Laminated Belts
Features
- High power rating compared to standard Wrap Belts.
- High tensile strength
- Improved flexibility and suitable for back idler applications
- Superior Belts life
- Temperature range: -25˚C to +100˚C

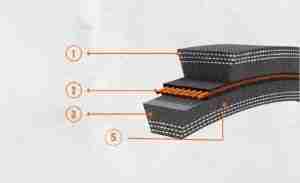

Constructional Details
- Multi-layer fabric provides extra strength and acts as a crack barrier under reverse bend conditions.
- High modulus polyester cords placed at the centre neutralises the reverse bending stress.
- Special rubber compound for better grip on smaller diameter pulleys.
- The unique design of raw edge laminated side-walls facilitates high power transmission and faster heat dissipation.
Product Range
| AX | 12.70 | 8.50 | 24 / 609 | 100 / 2500 |
| BX | 15.50 | 11.00 | 24 / 609 | 100 / 2500 |
| CX | 22.00 | 14.00 | 51 / 1295 | 100 / 2500 |
Reference Standards
BS 3790
Applications
Used in multiple applications, where drive demands high power and reverse bending properties .
Product Label
