Belts for CVT-drive, electric vehicles
Features
- Superior construction to sustain high torque capacity under extreme operating conditions
- Engineered Cog design (single or double-sided) for better flexibility & heat dissipation
- Specially engineered precise notch-profile offers extra protection to the Belts in CVT drive
- Superior grip to transmit maximum power with an enhanced high efficiency
- Lower slippage enhances the product life and efficiency
- Temperature range: -25ºC to +100ºC

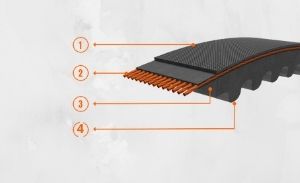

Construction Details
- Special fabric layer
- Specially treated polyester cords for high tensile strength & minimal elongation
- Fibre filled high modulus base compound
- Moulded cogs protected with the crack-resistant bottom fabric
XX Series
- Special top fabric layer
- Specially treated tensile member for high tensile strength & minimal elongation
- Engineered Cog design for better flexibility & heat dissipation
- Specially engineered precise notch-profile offers extra protection to the Belt in CVT Drives
- Fiber-filled high modulus base compound
XN Series
- Special fabric layer
- Specially treated polyester cords for high tensile strength & minimal elongation
- Fibre filled high modulus base compound
- Moulded cogs protected with the crack-resistant bottom fabric
Product Range
| Section | Top Width (mm) | Thickness (mm) | Angle (Degree) | Length Range (mm) |
|---|---|---|---|---|
| X-TW TH A L | 10 bis 40 | 10 bis 25 | 22 bis 40 | 600 bis 2000 |
| XX-TW TH A L | 10 bis 40 | 10 bis 25 | 22 bis 40 | 600 bis 2000 |
| XN-TW TH A L | 10 bis 40 | 10 bis 25 | 22 bis 40 | 600 bis 2000 |
Applications
Electric cars, ATV vehicles, CVT drives for automotive vehicles, etc.
