Automotive Series Belts
Features
- Suitable for high-speed engines
- Cog profile offers higher flexibility and quick heat dissipation
- Engineered and chemically treated modulus and low stretch tensile cords for higher load and maintenance-free operation
- Offers high power transmission over smaller pulley diameters
- Special compression rubber for high lateral rigidity
- EPDM rubber for high-temperature resistance -45°C to +120°C

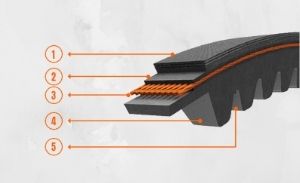

Constructional Details
- Specially designed top fabric for high resistance to wear and crack
- Special high thermal resistance adhesion compound for improved dynamic adhesion performance
- Specially treated polyester cord ensures minimal stretch of the belts
- Fibre loaded compression rubber compound for high power transmission and dimensional stability
- Moulded cog profile for superior flexibility and heat dissipation
Product Range
| Product Code | Top Width (mm) | Thickness (mm) | Angle (Degree) | Manufacturing Range (mm) | Length Designation | |
|---|---|---|---|---|---|---|
| Min. (mm) | Max. (mm) | |||||
| 2XXX | 10.0 | 8.0 | 36 | 550 | 2500 | La |
| 3XXX | 12.5 | 9.0 | 36 | 550 | 2500 | Lp |
| 5XXX | 17.0 | 11.0 | 36 | 550 | 2500 | Lp |
| 7XXX | 22.0 | 13.0 | 36 | 550 | 2500 | Lp |
| 1XXX | 10.5 | 8.0 | 38 | 550 | 2500 | Le |
| 6XXX | 13.0 | 8.0 | 38 | 550 | 2500 | Le |
| 8XXX | 17.0 | 11.0 | 38 | 550 | 2500 | Le |
| 9XXX | 22.5 | 13.0 | 38 | 550 | 2500 | Le |
Applications
Automotive engines, alternators, compressors, water pumps, fans, power steering pumps, etc
