Agricultural Moulded REC Belts
Features
- Higher power transmission capacity than standard Belts
- Enhanced longitudinal flexibility due to specially designed cog profile
- Suitable for drives using smaller diameter pulleys and high RPM
- Suitable for reverse bend drive
- The unique combination of lateral rigidity to reduce the dishing effect, offering improved power transmission
- Anti-static, oil & heat resistant
- Specially designed compound for significant performance under variable speed conditions
- No bottom cracking/chipping, as Belt design is application-specific
- Low stretch due to high tensile strength cord used in the Belt
- Temperature range: -25°C to +100°C

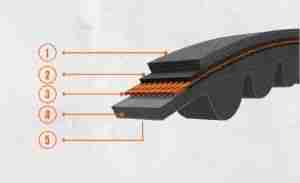

Construction Details
- Special fabric layer
- Cushion rubber compound.
- Specially treated & stabilized polyester cord
- Fibre-filled base compound
- Moulded cogs for better flexibility
Product Range
| Section | Dimension | Recommended Minimum pulley Dia. (mm) | Manufacturing Range | Length Desg. | |||
|---|---|---|---|---|---|---|---|
| Top Width (mm) | Thickness (mm) | Angle (Degree) | Min. (inch/mm) | Max. (inch/mm) | |||
| Classical Section | |||||||
| AX | 13.0 | 8.0 | 36 | 63 | 21.5/550 | 100/2500 | Li |
| BX | 17.0 | 11.0 | 36 | 90 | 21.5/550 | 100/2500 | Li |
| CX | 22.0 | 14.0 | 36 | 140 | 23.5/600 | 100/2500 | Li |
| Wedge Section | |||||||
| XPA | 13.0 | 10.0 | 36 | 71 | 21.5/550 | 100/2500 | Lp |
| XPB | 16.3 | 14.0 | 36 | 112 | 21.5/550 | 100/2500 | Lp |
| XPC | 22.0 | 18.0 | 36 | 180 | 23.5/600 | 100/2500 | Lp |
| Narrow Section | |||||||
| 3VX | 9.7 | 8.0 | 38 | 56 | 21.5/550 | 100/2500 | La |
| 5VX | 15.8 | 14.0 | 38 | 112 | 21.5/550 | 100/2500 | La |
Reference Standard
BS 3790, RMA IP 22, ISO 4184, IS 2494, ISO 3410, BS 3733, ASAE 211.3 & 4
