Agricultural Flat Belts
Features
- High abrasion resistant outer cover
- High strength tensile member with minimum elongation
- Suitable for harvester traction drives
- Temperature range: -18°C to +80°C

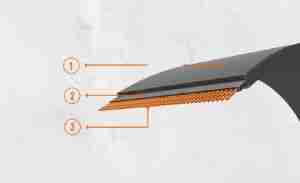

Construction Details
- Wear-resistant bias-cut neoprene rubberised polyester cotton fabric
- High tensile cord embedding cushion rubber compound
- High tenacity, low stretch specially treated polyester cord
Product Range
| Section | Thickness (mm) | Top width (mm) | Manufacturing Range | Length Desg | |
|---|---|---|---|---|---|
| Min. (inch/mm) | Max. (inch/mm) | ||||
| 75F | 75.0 | 6.0 | 2692 | 8941 | Li |
| 80F | 80.0 | 6.0 | 1956 | 6452 | Li |
| 95F | 95.0 | 6.0 | 2692 | 8001 | Li |
| 100F | 100.0 | 6.0 | 2159 | 8052 | Li |
| 114F | 114.0 | 6.0 | 2692 | 8052 | Li |
| 120F | 120.0 | 6.0 | 2692 | 8052 | Li |
| 125F | 125.0 | 6.0 | 1727 | 6401 | Li |
| 127F | 127.0 | 6.0 | 2692 | 8052 | Li |
| 135F | 135.0 | 6.0 | 2692 | 8052 | Li |
| 140F | 140.0 | 6.0 | 2692 | 8052 | Li |
| 150F | 150.0 | 6.0 | 2692 | 8052 | Li |
Applications
Industrial drives, generators, blowers, ball-mills, rolling mills, crushers, compressors, pumps, wet grinders, household appliances, cement
Industrial drives, generators, blowers, ball-mills, rolling mills, crushers, compressors, pumps, wet grinders, household appliances, cement
